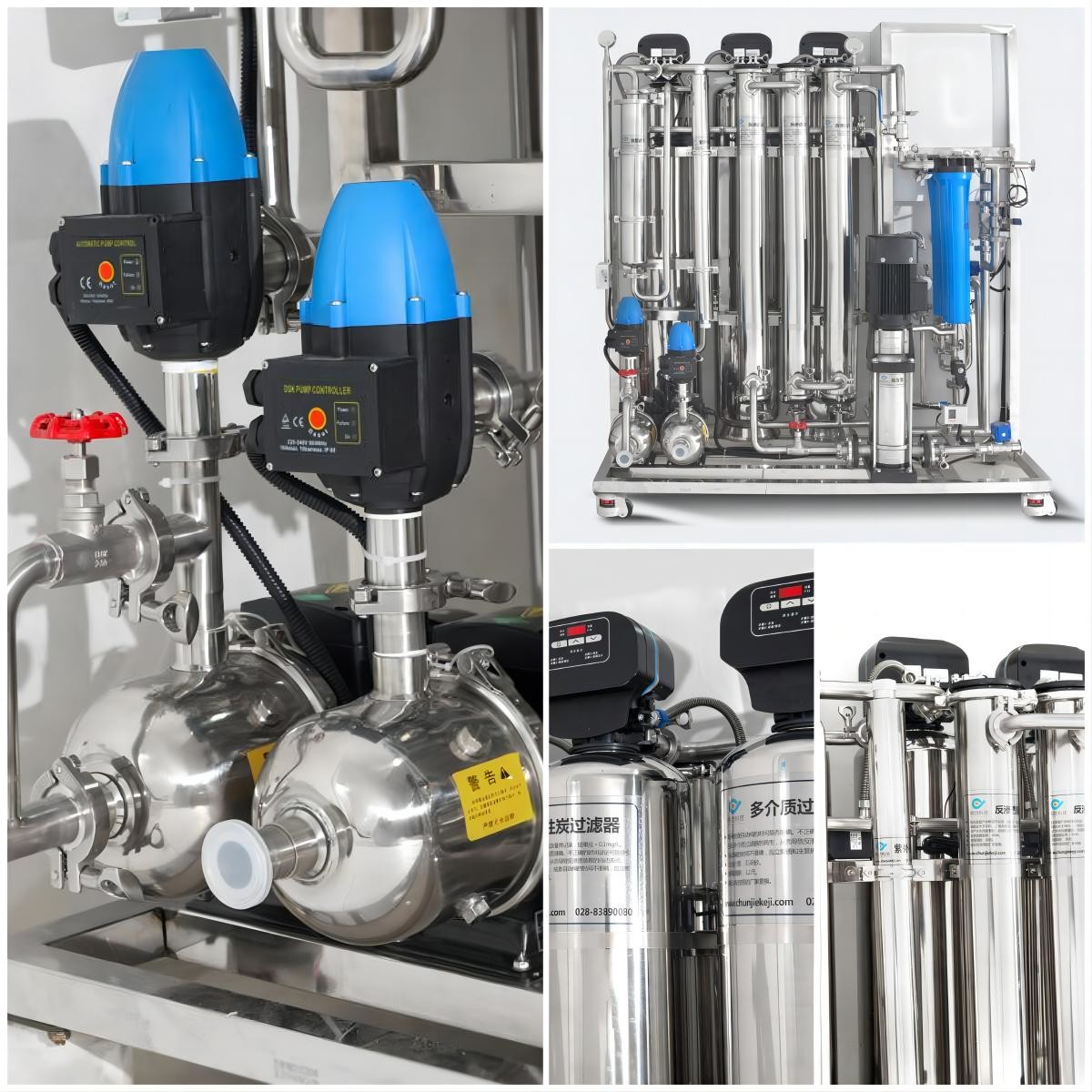

The 300LPH fully automatic RO+EDI upw system designed for the medical environment meets the high standards of the central sterile supply department. It has PLC programmable control, LCD touch screen and one-key disinfection function to ensure intelligent operation. All are made of 304 stainless steel, and key components are imported originals to ensure high quality.
▶ PLC programmable intelligent control program, with advanced functions such as fully automatic operation, maintenance, and flushing.
▶ LCD touch screen, real-time monitoring of water quality, water temperature, pressure, flow, etc., to achieve intelligent equipment.
▶ Fully automatic one-click disinfection (optional).
▶ High-quality craftsmanship, the host is all made of 304 stainless steel, and key components are imported originals (high-end).
▶ Using advanced electric desalination EDI technology, it can maintain high purity water quality for a long time and effectively reduce the replacement cost of consumables (optional).
▶ Built-in thermal online printer to automatically print water quality and system parameter records (optional).
▶ Computer remotely monitors the operating status of the system, updates data online, and stores data in the cloud (optional).
Pure Water Treatment Equipment Disinfection
- Effective disinfection: Select the appropriate disinfection mode to ensure that the tools are free of impurities and that there is no residual water after disinfection. For preventive disinfection based on the level of microorganisms, water machines and pipelines can be disinfected every three weeks. The actual frequency is adjusted based on the level of microorganisms. A combination of disinfectants is more effective than a single use.
- Control pollution: Strictly monitor dialysis water to ensure that the department environment complies with regulations and maintain appropriate temperature and humidity.
- Concentration testing: Concentration testing is carried out during the disinfection process to ensure full disinfection, and residual amounts are subsequently tested to avoid affecting treatment. Regularly conduct disinfection effect evaluations to keep bacteria and endotoxins within specified limits.
- Reasonable selection of disinfectant: avoid damage to the dialysis machine. For hot water sterilization systems, pay attention to heater power and temperature range.
- Standardized operating procedures: Monitor the conductivity, flow rate, etc. of the produced water every day to understand the performance of the membrane. Ensure strict and standardized operating procedures and work processes.
- Improvement of personnel quality: Emphasize the standardized operation and good hygiene habits of medical staff and abide by operating procedures.
Parameters
| Inlet Water Required | Tape Water ( conductivity”≤800μs.cm, pressure:0.2-0.5Mpa |
| Environmental Conditions | Temperature 5~40℃ |
| Inlet Water Temperature | 5~35℃ |
| RO Removal Rate | ≥99% |
| Output Water Quality | Resistance:≥10.MΩ.cm (Testing on Line) |
| Heavy Metal | <0.1ppb |
| Microorganism | <1ppb |
| Debris Particles | (>0.1um) <1/ml |
 | The whole UPW System is made of 304 sanitary stainless steel and equipped with a sterile water tank with immersion UV The imported PES bacteria filter device ensures that the water is truly sterile.
The PLC programmable programs are used to realize intelligent control, and the LCD touch screen displays the running status in real time and the running data.
Built-in thermal printer, automatic printing of water quality, system parameter records, and disinfection records.
|
