Product Description:
Our semiconductor manufacturing ultrapure water equipment will provide high-quality ultrapure water for your manufacturing process, ensuring that the surfaces of semiconductor chips and components are dust-free and free of impurities. Whether in wafer cleaning, thin film deposition or photolithography processes, our equipment will be your reliable partner to meet your stringent water quality requirements.
Main technical features:
- Multiple water treatment technologies: Our equipment combines multiple water treatment technologies such as reverse osmosis (RO), ion exchange (IX), ultraviolet (UV) disinfection, microfiltration and ultrafiltration. The combination of these technologies ensures the high purity and sterility of ultrapure water.
- Efficient purification capability: The reverse osmosis membrane of the equipment has fine pore sizes and can remove impurities such as dissolved ions, microorganisms and particles in the water. Ion exchange resin beds remove ionic contaminants from water, ensuring the stability and purity of water quality. Ultraviolet disinfection technology can effectively kill microorganisms in water and keep the water sterile.
- Automated control system: The equipment is equipped with an advanced automatic control system that can monitor and adjust water quality parameters in real time to ensure stable and consistent water quality. The system also has an alarm function, which can respond to abnormal situations in a timely manner and take corresponding measures.
- Advanced Filtration System: Our ultrapure water equipment is equipped with microfiltration and ultrafiltration membranes, capable of filtering out tiny suspended solids, particles and bacteria. These filtration systems use high-efficiency filter media and precise pore size control to ensure purification requirements during the semiconductor manufacturing process.
- Safety and reliability: The equipment has multiple safety protection measures, including pressure protection, water leakage alarm and power protection, etc. Our equipment undergoes rigorous testing and quality control to ensure its stability and reliability over long periods of operation.
- Customized design: We can provide customized design and configuration according to customers' specific needs and process requirements. From equipment dimensions to water quality parameters, we will work closely with our customers to provide the most suitable solution.
Parameters:
| Name | Semiconductor manufacturing ultrapure water equipment |
| Specifications currently available | 10 liters/hour,20 liters/hour |
| Quality of produced water | Conforms to GB/T6682-2008 laboratory water standard and US CAP standard |
| Tap water quality requirements | (TDS<200ppm) |
| Working temperature requirements | 10-35℃ room |
| Humidity requirements | 30%~85% |
| Power supply | 220V(+10%or-10%),50Hz(+1or-1)Pure(Adapter can be used) |
| Water tank storage | 10 litre |
| Particulate matter | (0.22μm) ≤1P/ml |
| Design Resistivity | 18.2MQ/Cm @25°℃ |
| RO conductivity | <10μs/cm (25℃) |
| Microorganisms | 0.1cfu/ml |
| Host Size | ≤600*260*450mm |

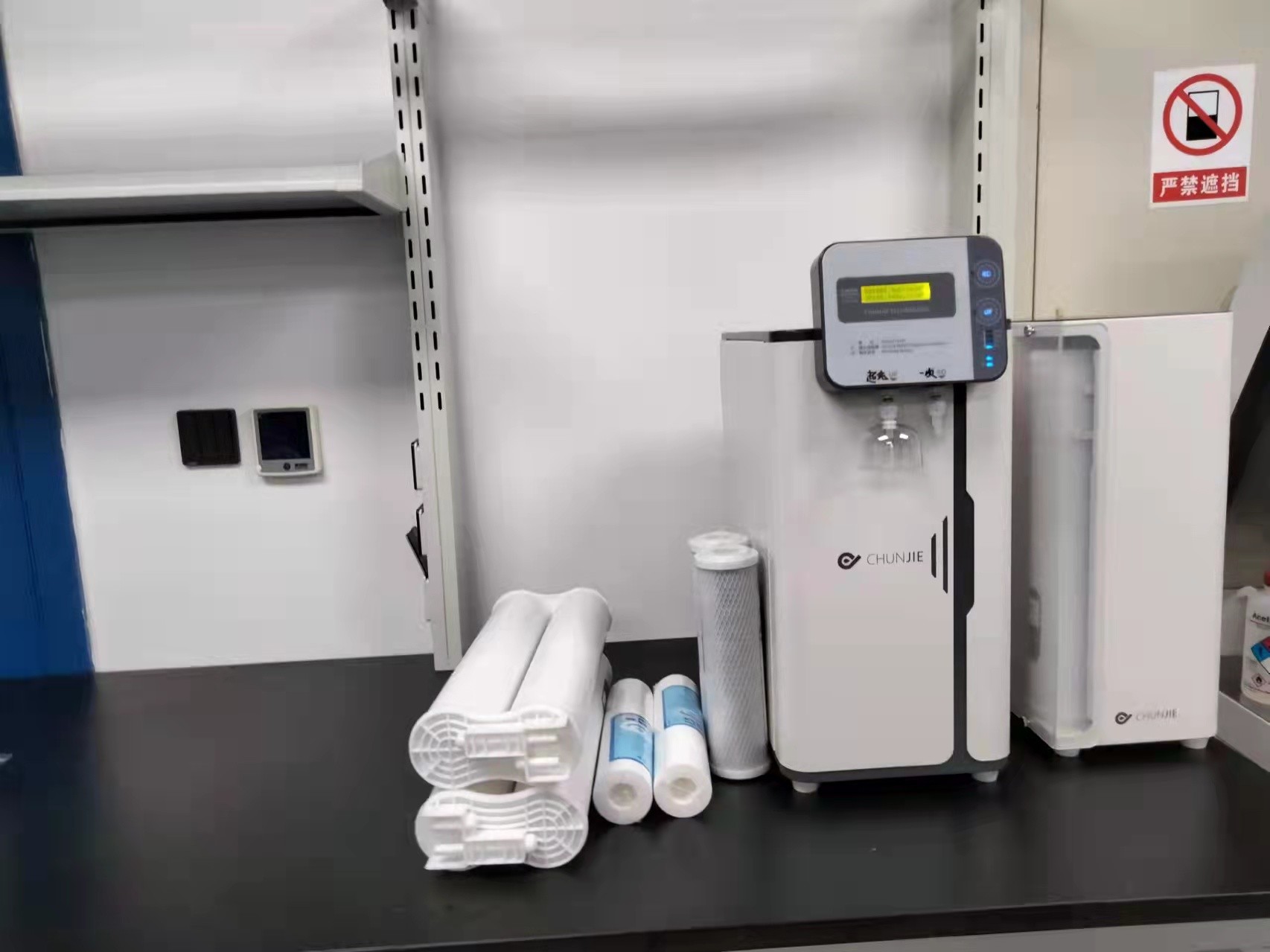

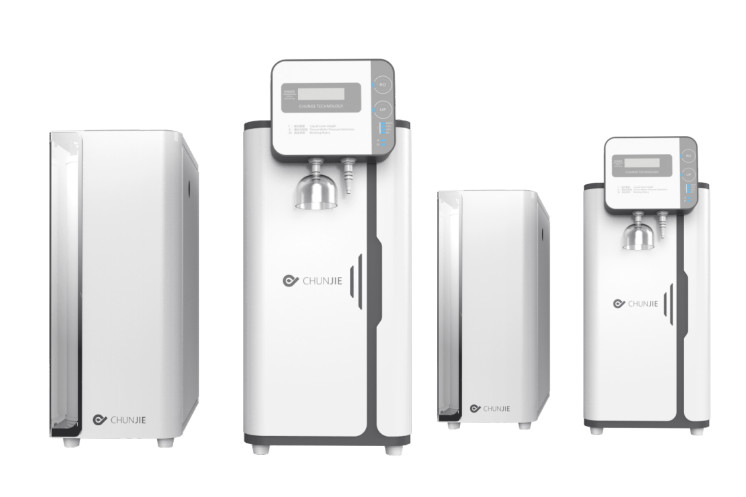

Main Pictures
